Compression
                  Driver from Chokes Unlimited
Contact Information
To view all of our Tweeters CLICK HERE.

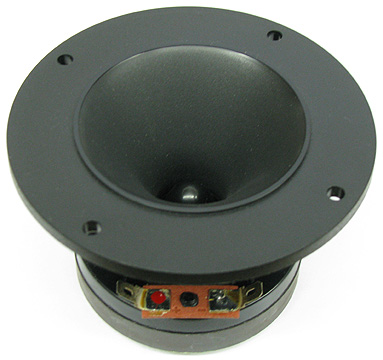

Phenolic Dome Compression Driver with Horn
Super Bullet Tweeter

Phenolic Diaphragm
                  Compression Driver
BT1

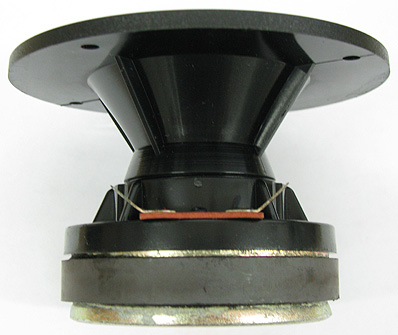

Phenolic Dome Compression
                Driver Side View
BT1 Side View
BT1
Specifications
Technical Characteristics
Value
Face Plate Diameter
3.845" (98mm)
Magnet Weight
10 oz
Magnet Diameter
2.760" (70mm)
Voice Coil Diameter
1" (25.4mm)
Mounting Depth from Face Plate
2.40" (61mm)
Frequency Response
4,000 -19,000 Hz
Power Handling
80 Watts
Sensitivity
100 dB
Impedance
8 ohms
Pricing
Part No.
Each
BT1
$12.00
